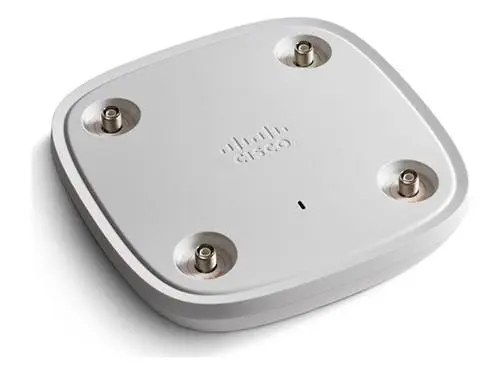

Точка доступа Cisco Catalyst, 802.11ax, внешние антенны C9120AXE-E

Основные характеристики

802.11ac

4x4 downlink MU-MIMO with four spatial streamsMRC802.11ac beamforming20-, 40-, 80-, and 160-MHz channelsPHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)802.11 DFSCSD support

802.11ax

4x4 downlink MU-MIMO with four spatial streamsUplink/downlink OFDMATWTBSS coloringMRC802.11ax beamforming20-, 40-, 80-, and 160-MHz channelsPHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)802.11 DFSCSD support

802.11n version 2.0 (and related) capabilities

4x4 MIMO with four spatial streamsMaximal Ratio Combining (MRC)802.11n and 802.11a/g beamforming20- and 40-MHz channelsPHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)802.11 Dynamic Frequency Selection (DFS)Cyclic Shift Diversity (CSD) support

Available transmit power settings

2.4 GHz23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1dBm (0.79mW)-4dBm(0.39mW)5 GHz26 dBm (400 mW)23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1dBm (0.79mW)

Dimensions (W x L x H)

Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm)

Environmental

Cisco Catalyst 9120AXINonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)Nonoperating (storage) altitude test: 25?C, 15,000 ft.Operating temperature: 32° to 122°F (0° to 50°C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40?C, 9843 ft

External antenna (sold separately)

Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antennaCisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenariosSupports Self-Identifiable Antennas (SIA) on one RP-TNC port

Frequency band and 20-MHz operating channels

E (E regulatory domain):2.412 to 2.472 GHz, 13 channels<br></br> 5.180 to 5.320 GHz, 8 channels<br></br> 5.500 to 5.700 GHz, 8 channels<br></br> (excludes 5.600 to 5.640 GHz)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Input power requirements

802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)Cisco power injector, AIR-PWRINJ6=802.3af PoECisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Integrated antenna

Flexible radio (either on 2.4GHz or on 5GHz)2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuthDedicated 5GHz radio5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

Interfaces

1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bzManagement console port (RJ-45)USB 2.0 @ 3.75W (enabled via future software)

Smart Antenna Connector

Available on the 9120E and on the 9120P onlyCompact multi RF connector with DART interfaceRequires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connectorRequired when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio

Software

Cisco Unified Wireless Network Software Release 8.9.x or laterCisco IOS ® XE Software Release 16.11 with AP Device Pack, or later

Supported wireless LAN controllers

Cisco Catalyst 9800 Series Wireless ControllersCisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller

System memory

2048 MB DRAM1024 MB flash

Производитель

Cisco
