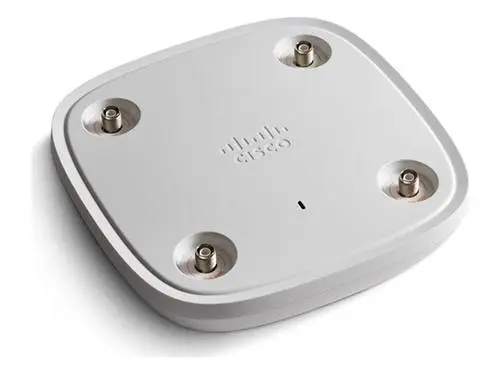

Точка доступа Cisco Catalyst, 802.11ax, внешние антенны C9115AXE-E

Основные характеристики

802.11ac

4x4 downlink MU-MIMO with four spatial streamsMRC802.11ac beamforming20-, 40-, 80-, and 160-MHz channelsPHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)802.11 DFSCSD support

802.11ax

4x4 downlink MU-MIMO with four spatial streamsUplink/downlink OFDMATWTBSS coloringMRC802.11ax beamforming20-, 40-, 80-, and 160-MHz channelsPHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)802.11 DFSCSD support

802.11n версии 2.0

4x4 MIMO with four spatial streamsMaximal Ratio Combining (MRC)802.11n and 802.11a/g beamforming20- and 40-MHz channelsPHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)802.11 Dynamic Frequency Selection (DFS)Cyclic Shift Diversity (CSD) support

Frequency band and 20-MHz operating channels

E (E regulatory domain):2.412 to 2.472 GHz, 13 channels<br></br> 5.180 to 5.320 GHz, 8 channels<br></br> 5.500 to 5.700 GHz, 8 channels<br></br> (excludes 5.600 to 5.640 GHz)

Внешние антенны (продаются отдельно)

Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Встроенные антенны

2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

Габариты (W x L x H)

C9115I: 20.3 x 20.3 x 3.8 cm, C9115E: 20.3 x 20.3 x 4.3 cm

Доступные опции

2.4 GHz23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1dBm (0.79mW)-4dBm (0.39mW)5 GHz23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1dBm (0.79mW)-4dBm (0.39mW)

Индикаторы

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Интерфейсы

1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bzManagement console port (RJ-45)USB 2.0 (enabled via future software)

Окружающая среда

Cisco Catalyst 9115AXINonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)Nonoperating (storage) altitude test: 25?C, 15,000 ft.Operating temperature: 32° to 122°F (0° to 50°C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40?C, 9843 ft.Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.Cisco Catalyst 9115AXENonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)Nonoperating (storage) altitude test: 25?C, 15,000 ft.Operating temperature: -4° to 122°F (-20° to 50°C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40?C, 9843 ft

Память

2048 MB DRAM1024 MB flash

Питание

802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)Cisco power injector, AIR-PWRINJ6=802.3af PoECisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off

Поддерживает контроллеры

Cisco Catalyst 9800Cisco 3500, 5520, и 8540, а также виртуальный контроллер Cisco

Программное обеспечение

Cisco Unified Wireless Network Software Release 8.9 or laterCisco IOS ® XE Software Release 16.11 or later

Производитель

Cisco
