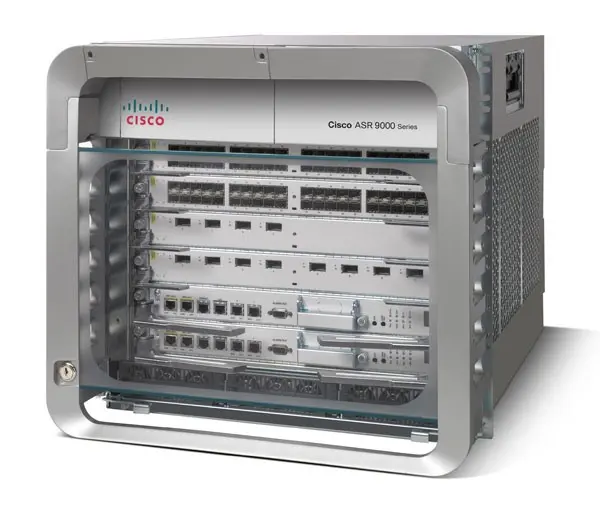

Specification | Cisco ASR 9010 |
Physical specifications | Height: 36.75 in. (933.45 mm) (21 RU)Width: 17.38 in. (441.45 mm)Depth:? With doors: 29.03 in. (737.4 mm) ? Without doors: 28.24 in. (717.3 mm) Weight:? 155.6 lb (70.73 kg) (chassis with PEM) 231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) – RSP, two v2 fan trays, PEMs |
Slot orientation | Vertical |
Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots |
Cisco ASR 9000 Series line cards | 8 line-card slots |
“Commons” components | 2 RSPs2 fan trays2 PEMs (either DC or AC)1 fan filter |
Reliability and availability | Fabric redundancyFan redundancyFeed redundancyPower-supply redundancyRSP redundancySoftware redundancy |
Rack mounting | 19-in. default21- and 23-in. adapters availableNote: Minimum 17.75-in. opening between posts is needed for proper operation |
Cabinet mounting | YesNote: Doors not recommended in enclosed cabinets |
Wall mounting | No |
Airflow | Front-to-back |
Performance | |
Fabric | One per RSP:? Active/active nonblocking operation mode in dual-RSP redundant configuration? Fully redundant in dual-RSP redundant configuration? Built-in service-intelligence and traffic-prioritization capability |
Thermal | Two fan trays:? 12 high-efficiency fans per tray? Variable-speed fans for optimal thermal performance? No single point of failure |
Power | |
Modularity | Pay-as-you-grow power for future scalability, available in AC and DC.Multiple power module types:? 6 kW and 3 kW AC power modules? 4.4 kW and 2.1 kW DC power modulesNote: Mixing of AC and DC modules is not supported |
Redundancy | ? AC: N+N redundancy? DC: N+1 redundancy? Power module redundancy? A/B Feed redundancy? PEM redundancy |
Power zones | No power zone restrictionsFully load-sharing power infrastructure |
Power input | Worldwide ranging AC (200-240V, 50-60 Hz, 16A maximum)Worldwide ranging DC (-40 to -72V, 50A nominal, 60A maximum) |
Power-module airflow | Front-to-back |
Environmental Specifications (All Entries Applicable to Cisco ASR 9006 and ASR 9010) | |
Operating temperature (nominal) | 41 to 104?F (5 to 40?C) |
Operating temperature (short-term) | ASR 9010: 23 to 122?F (-5 to 50?C) |
Operating humidity (nominal) (relative humidity) | 5 to 90% |
Storage temperature | -40 to 158?F (-40 to 70?C) |
Storage (relative humidity) | 5 to 93% |
Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
Regulatory Compliance (All Entries Applicable to Cisco ASR 9006 and ASR 9010) | |
Network Equipment Building Standards (NEBS) | Cisco ASR 9006 and ASR 9010 Routers are designed to meet:? SR-3580: NEBS Criteria Levels (Level 3)? GR-1089-CORE: NEBS EMC and Safety? GR-63-CORE: NEBS Physical Protection? VZ.TPR.9205: Verizon TEEER |
ETSI Standards | Cisco ASR 9006 and ASR 9010 Routers are designed to meet:? EN300 386: Telecommunications Network Equipment (EMC)? ETSI 300 019 Storage Class 1.1? ETSI 300 019 Transportation Class 2.3? ETSI 300 019 Stationary Use Class 3.1 |
EMC standards emission | Cisco ASR 9006 and ASR 9010 Routers are designed to meet:? FCC Class 47CFR15 A? ICES 003 Class A? AS/NZS CISRP22 Class A? CISPR 22 (EN55022) Class A? VCCI Class A? BSMI Class A? IEC/EN 61000-3-12: Power Line Harmonics? IEC/EN 61000-3-11: Voltage Fluctuations and Flicker? EN55022: Information Technology Equipment (Emissions)? EN 50121-4: Railway EMC |
EMC standards immunity | Cisco ASR 9006 and ASR 9010 Routers are designed to meet:? IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)? IEC/EN-61000-4-3: Radiated Immunity (10V/m)? IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)? IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)? IEC/EN-61000-4-5: Signal Surge Ports (1kV)? IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)? IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)? IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)? IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations? EN55024: Information Technology Equipment (Immunity)? EN50082-1/EN-61000-6-1: Generic Immunity Standard? EN 50121-4: Railway EMC |
Safety | Cisco ASR 9006 and ASR 9010 Routers are designed to meet:? UL/CSA/IEC/EN 60950-1? IEC/EN 60825 Laser Safety? ACA TS001? AS/NZS 60950? FDA Code of Federal Regulations Laser Safety |
Производитель | Cisco |
