Артикул: N5596UPM-8N2248TP

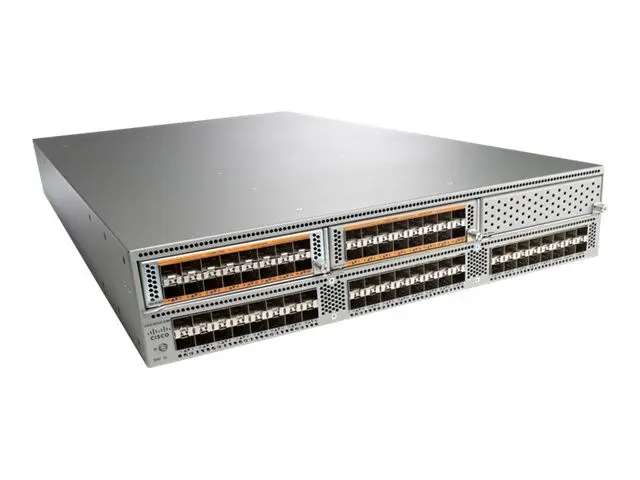

Коммутатор Cisco N5596UPM-⁠8N2248TP

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-cisco.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 499 490-50-27

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара

Nexus 5596UP/8xN2248TP/Expansion Module
GeneralExpansion / ConnectivityPowerMiscellaneousDimensions & WeightManufacturer WarrantyEnvironmental Parameters
Device TypeSwitch - 64 ports - managed - with 8x Cisco Nexus 2248TP GE Fabric Extender
Enclosure TypeRack-mountable - 2U
Interfaces10 Gigabit Ethernet
Ports64 x SFP+
PerformanceForwarding performance : 1920 Gbps
MAC Address Table Size32K entries
Jumbo Frame Support9216
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Encryption AlgorithmAES
Authentication MethodRADIUS, TACACS+, MS-CHAP
FeaturesLayer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+)
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p
Interfaces64 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management
Expansion Slots3 (total) / 2 (free) x expansion slot
Power DeviceInternal power supply - hot-plug
Installed Qty2
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Power Consumption Operational660 Watt
Compliant StandardsRoHS
Approximate Width17.3 in
Approximate Depth29.5 in
Approximate Height3.5 in
Approximate Weight47.6 lbs
Service & Support1 year warranty
Service & Support DetailsLimited warranty - replacement - 1 year
Min Operating Temperature32
Max Operating Temperature104
Humidity Range Operating5 - 95% (non-condensing)
Max Storage Temperature158
ПроизводительCisco

Технические характеристики N5596UPM-8N2248TP

Основные характеристики

Approximate Depth
29.5 in
Approximate Height
3.5 in
Approximate Weight
47.6 lbs
Approximate Width
17.3 in
Authentication Method
RADIUS, TACACS+, MS-CHAP
Compliant Standards
RoHS
Device Type
Switch - 64 ports - managed - with 8x Cisco Nexus 2248TP GE Fabric Extender
Enclosure Type
Rack-mountable - 2U
Encryption Algorithm
AES
Expansion Slots
3 (total) / 2 (free) x expansion slot
Features
Layer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+)
Humidity Range Operating
5 - 95% (non-condensing)
Installed Qty
2
Interfaces
64 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management
Jumbo Frame Support
9216
MAC Address Table Size
32K entries
Max Operating Temperature
104
Max Storage Temperature
158
Min Operating Temperature
32
Performance
Forwarding performance : 1920 Gbps
Ports
64 x SFP+
Power Consumption Operational
660 Watt
Power Device
Internal power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Voltage Required
AC 120/230 V ( 50/60 Hz )
Производитель
Cisco
Service & Support
1 year warranty
Service & Support Details
Limited warranty - replacement - 1 year
