Артикул: N5596UP-B-FC48

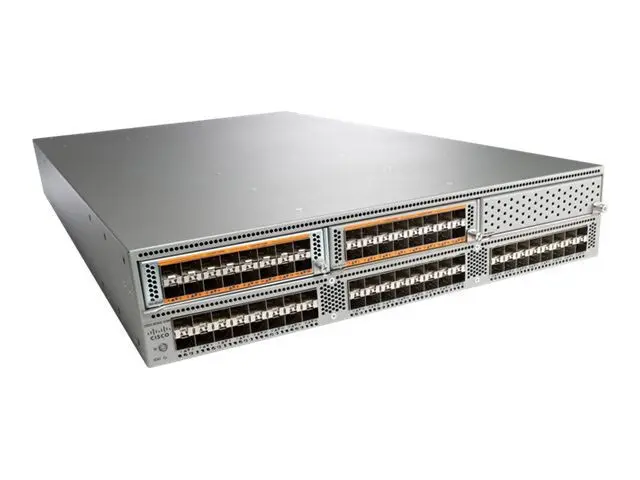

Коммутатор Cisco N5596UP-B-FC48
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара
Nexus 5596UP, 48 FC transceiver, 48p storage license
| Device Type | Switch - 48 ports - managed - with 48x Cisco MDS 9000 Family 2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC (DS-SFP-FC8G-SW) |
| Enclosure Type | Rack-mountable - 2U |
| Interfaces | 10 Gigabit Ethernet |
| Ports | 48 x SFP+ |
| Performance | Forwarding performance : 1920 Gbps |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
| Features | Layer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p |
| Interfaces | 48 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Mounting Kit | Included |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, BSMI CNS 13438, GB 4943, FIPS 140-2 Level 1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A |
| Approximate Width | 17.3 in |
| Approximate Depth | 29.5 in |
| Approximate Height | 3.5 in |
| Approximate Weight | 47.5 lbs |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - replacement - 1 year - response time: 10 days |
| Min Operating Temperature | 32 |
| Max Operating Temperature | 104 |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | 40 |
| Max Storage Temperature | 158 |
| Производитель | Cisco |
| EOS | 05.05.2019 |
Технические характеристики N5596UP-B-FC48
Основные характеристики
- Approximate Depth
- 29.5 in
- Approximate Height
- 3.5 in
- Approximate Weight
- 47.5 lbs
- Approximate Width
- 17.3 in
- Authentication Method
- RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, BSMI CNS 13438, GB 4943, FIPS 140-2 Level 1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
- Device Type
- Switch - 48 ports - managed - with 48x Cisco MDS 9000 Family 2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC (DS-SFP-FC8G-SW)
- Enclosure Type
- Rack-mountable - 2U
- Encryption Algorithm
- AES
- EOS
- 05.05.2019
- Expansion Slots
- 3 (total) / 3 (free) x expansion slot
- Features
- Layer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+)
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Installed Qty
- 2 (installed) / 2 (max)
- Interfaces
- 48 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management
- Jumbo Frame Support
- 9216
- MAC Address Table Size
- 32K entries
- Max Operating Temperature
- 104
- Max Storage Temperature
- 158
- Min Operating Temperature
- 32
- Min Storage Temperature
- 40
- Mounting Kit
- Included
- Performance
- Forwarding performance : 1920 Gbps
- Ports
- 48 x SFP+
- Power Device
- Internal power supply - hot-plug
- Power Provided
- 1100 Watt
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Voltage Required
- AC 120/230 V ( 50/60 Hz )
- Производитель
- Cisco
- Service & Support
- 1 year warranty
- Service & Support Details
- Limited warranty - replacement - 1 year - response time: 10 days
Отзывы о товаре
Нет отзывов об этом товаре.
