Артикул: N5596UP-4FEX

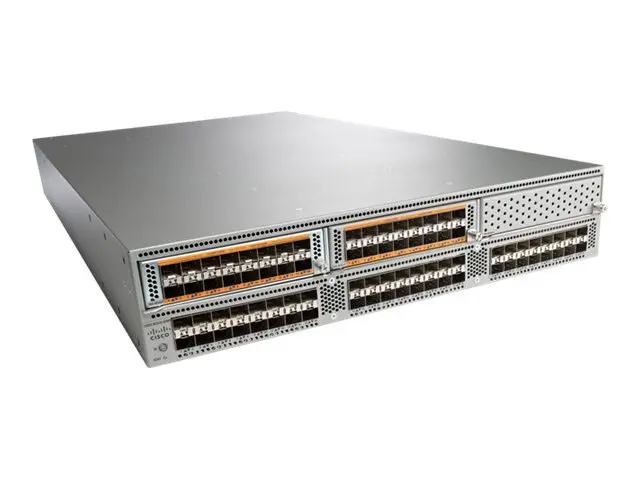

Коммутатор Cisco N5596UP-⁠4FEX

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-cisco.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 499 490-50-27

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара

Nexus 5596UP/4 x FEX
GeneralExpansion / ConnectivityPowerMiscellaneousDimensions & WeightManufacturer WarrantyEnvironmental Parameters
Device TypeSwitch - 48 ports - managed - with 64x 10G SFP+ module (FET-10G)
Enclosure TypeRack-mountable - 2U
Interfaces10 Gigabit Ethernet
Ports48 x SFP+
PerformanceForwarding performance : 1920 Gbps
MAC Address Table Size32K entries
Jumbo Frame Support9216
Routing ProtocolRIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, static IP routing, IGMPv3, PIM-SSM, ECMP
Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption AlgorithmAES
Authentication MethodRADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
FeaturesLayer 2 switching, ARP support, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP)
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p
Interfaces48 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management
Expansion Slots3 (total) / 3 (free) x expansion slot
Power DeviceInternal power supply - hot-plug
Installed Qty2
Power RedundancyYes
Power Redundancy Scheme1+1
Power Provided1.1 kW
Voltage RequiredAC 120/230 V ( 50/60 Hz )
FeaturesFront-to-rear air ow
Mounting KitIncluded
Compliant StandardsCISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, GB 4943, CAN/CSA C22.2 No. 60950-1
Approximate Width17.3 in
Approximate Depth29.5 in
Approximate Height3.5 in
Approximate Weight47.5 lbs
Service & Support1 year warranty
Service & Support DetailsLimited warranty - replacement - 1 year - response time: 10 days
Min Operating Temperature32
Max Operating Temperature104
Humidity Range Operating5 - 95% (non-condensing)
Min Storage Temperature40
Max Storage Temperature158
ПроизводительCisco

Технические характеристики N5596UP-4FEX

Основные характеристики

Approximate Depth
29.5 in
Approximate Height
3.5 in
Approximate Weight
47.5 lbs
Approximate Width
17.3 in
Authentication Method
RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Compliant Standards
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, GB 4943, CAN/CSA C22.2 No. 60950-1
Device Type
Switch - 48 ports - managed - with 64x 10G SFP+ module (FET-10G)
Enclosure Type
Rack-mountable - 2U
Encryption Algorithm
AES
Expansion Slots
3 (total) / 3 (free) x expansion slot
Features
Front-to-rear air ow
Humidity Range Operating
5 - 95% (non-condensing)
Installed Qty
2
Interfaces
48 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management
Jumbo Frame Support
9216
MAC Address Table Size
32K entries
Max Operating Temperature
104
Max Storage Temperature
158
Min Operating Temperature
32
Min Storage Temperature
40
Mounting Kit
Included
Performance
Forwarding performance : 1920 Gbps
Ports
48 x SFP+
Power Device
Internal power supply - hot-plug
Power Provided
1.1 kW
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing Protocol
RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, static IP routing, IGMPv3, PIM-SSM, ECMP
Voltage Required
AC 120/230 V ( 50/60 Hz )
Производитель
Cisco
Service & Support
1 year warranty
Service & Support Details
Limited warranty - replacement - 1 year - response time: 10 days
