Артикул: WS-C3750X-12S-S
Коммутатор Cisco Catalyst WS-C3750X-12S-S
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара

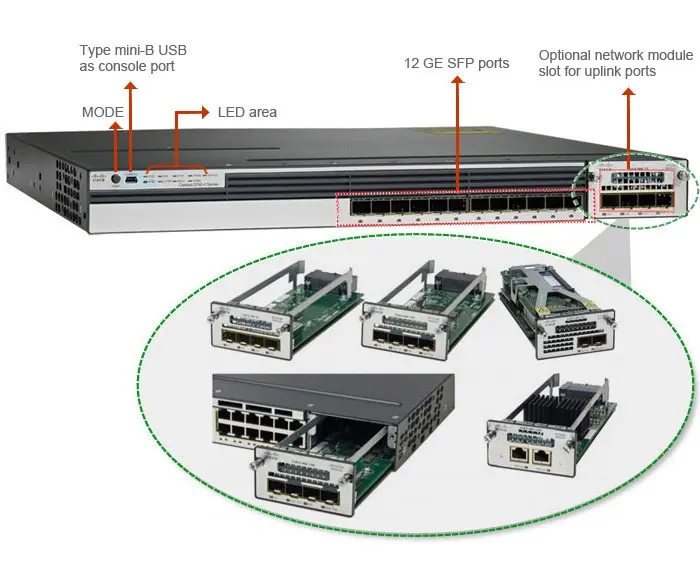

Catalyst 3750X 12 Port GE SFP IP Base
| Device Type | Switch - 12 ports - managed - stackable |
| Enclosure Type | Rack-mountable - 1U |
| Interfaces | Gigabit Ethernet |
| Ports | 12 x Gigabit SFP |
| Performance | Switching fabric bandwidth : 160 Gbps Forwarding performance : 35.7 Mpps |
| Capacity | Virtual interfaces (VLANs) : 1005 Switched virtual interfaces (SVIs) : 1000 |
| Jumbo Frame Support | 9216 |
| Max Units In A Stack | 9 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Interfaces | 12 x SFP (mini-GBIC) 1 x USB - Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management 2 x network stack device |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Cables Included | 1 x stacking cable |
| Rack Mounting Kit | Optional |
| MTBF | 194,224 hours |
| Compliant Standards | TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| Software Included | Cisco IOS IP Base |
| Approximate Width | 17.5 in |
| Approximate Depth | 18.1 in |
| Approximate Height | 1.8 in |
| Approximate Weight | 15 lbs |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime Limited warranty - power supply and fans - 5 years New releases update - lifetime |
| Min Operating Temperature | 23 |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | 40 |
| Max Storage Temperature | 158 |
| Производитель | Cisco |
| EOS | 30.10.2016 |
Технические характеристики WS-C3750X-12S-S
Основные характеристики
- Approximate Depth
- 18.1 in
- Approximate Height
- 1.8 in
- Approximate Weight
- 15 lbs
- Approximate Width
- 17.5 in
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Cables Included
- 1 x stacking cable
- Capacity
- Virtual interfaces (VLANs) : 1005 Switched virtual interfaces (SVIs) : 1000
- Compliant Standards
- TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
- Device Type
- Switch - 12 ports - managed - stackable
- Enclosure Type
- Rack-mountable - 1U
- EOS
- 30.10.2016
- Expansion Slots
- 1 (total) / 1 (free) x expansion slot
- Features
- Redundant Power System (RPS) connector
- Flash Memory
- 128 MB
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Installed Qty
- 1 (installed) / 2 (max)
- Interfaces
- 12 x SFP (mini-GBIC) 1 x USB - Type A 1 x console - mini-USB Type B - management 1 x RS-232 - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management 2 x network stack device
- Jumbo Frame Support
- 9216
- Max Storage Temperature
- 158
- Max Units In A Stack
- 9
- Min Operating Temperature
- 23
- Min Storage Temperature
- 40
- MTBF
- 194,224 hours
- Performance
- Switching fabric bandwidth : 160 Gbps Forwarding performance : 35.7 Mpps
- Ports
- 12 x Gigabit SFP
- Power Device
- Internal power supply
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Rack Mounting Kit
- Optional
- RAM
- 512 MB
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
- Routing Protocol
- RIP-1, RIP-2, HSRP, static IP routing, RIPng
- Software Included
- Cisco IOS IP Base
- Status Indicators
- Port status, link activity, port transmission speed, port duplex mode, power, system
- Voltage Required
- AC 120/230 V ( 50/60 Hz )
- Производитель
- Cisco
- Service & Support
- Limited lifetime warranty
- Service & Support Details
- Limited warranty - lifetime Limited warranty - power supply and fans - 5 years New releases update - lifetime
