Артикул: WS-C4948-10GE-E

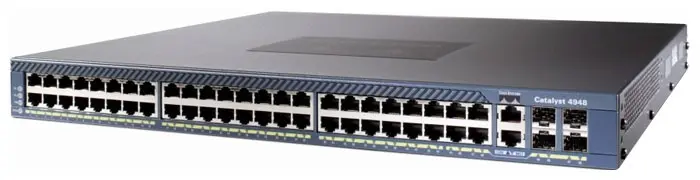

Коммутатор Cisco Catalyst, 48 x GE, 2 x 10G(X2), AC, Enterprise Services WS-⁠C4948-⁠10GE-⁠E

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@ru-cisco.com

Нужна скидка? Звони — сделаем лучшее предложение

+7 499 490-50-27

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Описание товара

Catalyst 4948, набор функций ES Image, 48 портов 10/100/1000 и 2 порта 10GE(X2), 1 блок питания AC
GeneralExpansion / ConnectivityPowerMiscellaneousSoftware / System RequirementsDimensions & WeightManufacturer WarrantyEnvironmental Parameters
Device TypeSwitch - 48 ports - L3 - managed
Enclosure TypeRack-mountable - 1U
InterfacesGigabit Ethernet
Ports48 x 10/100/1000 + 2 x X2
PerformanceSwitching capacity : 136 Gbps Throughput : 102 Mpps
CapacityActive VLANs : 4096 Spanning Tree Protocol instances : 10000 Switched virtual interfaces (SVIs) : 2000 QoS hardware entries : 32000 Multicast entries (Layer 3) : 28000 Multicast entries (Layer 2) : 16000
MAC Address Table Size55K entries
Jumbo Frame Support9216
Routing ProtocolOSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, DVMRP, VRRP, static IP routing, IGMPv3, PIM-SSM, policy-based routing (PBR)
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, CLI
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
FeaturesLayer 3 switching, layer 2 switching, auto-sensing per device, IP-routing, auto-negotiation, BOOTP support, ARP support, trunking, Cisco Fast EtherChannel, load balancing, VLAN support, Cisco Gigabit EtherChannel , IGMP snooping, ISL support, Syslog support, manageable, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), Time Domain Reflectometry (TDR), WCCP 2.0, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag
Processor1 : 666 MHz
RAM256 MB - SDRAM
Status IndicatorsLink activity, system, status
Interfaces48 x 1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x 100Base-TX - RJ-45 - management 2 x X2
Power DeviceInternal power supply - hot-plug
Installed Qty1 (installed) / 2 (max)
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Compliant StandardsNEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60825-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1, AS/NZS 60950
Pricing TypeRefurbished
Software IncludedCisco IOS Enterprise Services
Approximate Width17.3 in
Approximate Depth16.1 in
Approximate Height1.7 in
Approximate Weight16.5 lbs
Service & Support1 year warranty
Service & Support DetailsLimited warranty - 1 year
Min Operating Temperature32
Max Operating Temperature104
Humidity Range Operating10 - 90% (non-condensing)
Min Storage Temperature40
Max Storage Temperature167
ПроизводительCisco

Технические характеристики WS-C4948-10GE-E

Основные характеристики

Approximate Depth
16.1 in
Approximate Height
1.7 in
Approximate Weight
16.5 lbs
Approximate Width
17.3 in
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
Active VLANs : 4096 Spanning Tree Protocol instances : 10000 Switched virtual interfaces (SVIs) : 2000 QoS hardware entries : 32000 Multicast entries (Layer 3) : 28000 Multicast entries (Layer 2) : 16000
Compliant Standards
NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60825-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1, AS/NZS 60950
Device Type
Switch - 48 ports - L3 - managed
Enclosure Type
Rack-mountable - 1U
Features
Layer 3 switching, layer 2 switching, auto-sensing per device, IP-routing, auto-negotiation, BOOTP support, ARP support, trunking, Cisco Fast EtherChannel, load balancing, VLAN support, Cisco Gigabit EtherChannel , IGMP snooping, ISL support, Syslog support, manageable, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), Time Domain Reflectometry (TDR), WCCP 2.0, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST)
Humidity Range Operating
10 - 90% (non-condensing)
Installed Qty
1 (installed) / 2 (max)
Interfaces
48 x 1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x 100Base-TX - RJ-45 - management 2 x X2
Jumbo Frame Support
9216
MAC Address Table Size
55K entries
Max Operating Temperature
104
Max Storage Temperature
167
Min Operating Temperature
32
Min Storage Temperature
40
Performance
Switching capacity : 136 Gbps Throughput : 102 Mpps
Ports
48 x 10/100/1000 + 2 x X2
Power Device
Internal power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Pricing Type
Refurbished
Processor
1 : 666 MHz
RAM
256 MB - SDRAM
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, CLI
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, DVMRP, VRRP, static IP routing, IGMPv3, PIM-SSM, policy-based routing (PBR)
Software Included
Cisco IOS Enterprise Services
Status Indicators
Link activity, system, status
Voltage Required
AC 120/230 V ( 50/60 Hz )
Производитель
Cisco
Service & Support
1 year warranty
Service & Support Details
Limited warranty - 1 year
