Артикул: WS-C2960XR-24TS-I

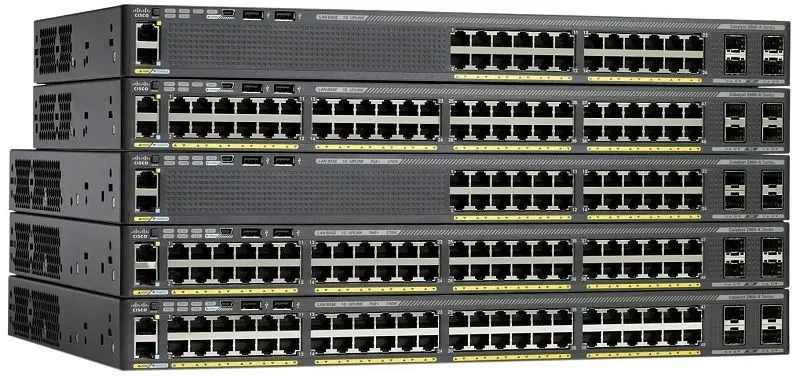

Коммутатор Cisco Catalyst, 24 x GE, 4 x 1G SFP, IP Lite WS-C2960XR-24TS-I
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Описание товара
Catalyst 2960-XR на 24 порта Gigabit Ethernet, 4 разъема 1G SFP, набор функций IP Lite Сервисный контракт Cisco SMARTnet (8x5xNBD) для данного коммутатора: CON-SNT-WS296X24
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching capacity : 216 Gbps Forwarding performance (64-byte packet size) : 71.4 Mpps |
| Capacity | Virtual interfaces (VLANs) : 1023 |
| Jumbo Frame Support | 9216 |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX |
| Processor | : 600 MHz |
| RAM | 512 MB |
| Flash Memory | 64 MB |
| Status Indicators | Link activity, port transmission speed, port duplex mode, system, status |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x console - mini-USB Type B - management 1 x USB - Type A 1 x 10Base-T/100Base-TX - RJ-45 - management 4 x SFP (mini-GBIC) |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 250 Watt |
| MTBF | 557,320 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, CNS 13438(95) Class A |
| Software Included | Cisco IOS IP Lite |
| Approximate Width | 17.5 in |
| Approximate Depth | 16.1 in |
| Approximate Height | 1.8 in |
| Approximate Weight | 13 lbs |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - advance parts replacement - lifetime - response time: 10 days Technical support - consulting - 90 days |
| Min Operating Temperature | 23 |
| Max Operating Temperature | 113 |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | 13 |
| Max Storage Temperature | 158 |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Производитель | Cisco |
Технические характеристики WS-C2960XR-24TS-I
Основные характеристики
- Approximate Depth
- 16.1 in
- Approximate Height
- 1.8 in
- Approximate Weight
- 13 lbs
- Approximate Width
- 17.5 in
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Capacity
- Virtual interfaces (VLANs) : 1023
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, CNS 13438(95) Class A
- Device Type
- Switch - 24 ports - L3 - managed - stackable
- Enclosure Type
- Desktop, rack-mountable - 1U
- Features
- Layer 3 switching, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet
- Flash Memory
- 64 MB
- Humidity Range Operating
- 10 - 95% (non-condensing)
- Humidity Range Storage
- 10 - 95% (non-condensing)
- Installed Qty
- 1 (installed) / 2 (max)
- Interfaces
- 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x console - mini-USB Type B - management 1 x USB - Type A 1 x 10Base-T/100Base-TX - RJ-45 - management 4 x SFP (mini-GBIC)
- Jumbo Frame Support
- 9216
- Max Operating Temperature
- 113
- Max Storage Temperature
- 158
- Max Units In A Stack
- 8
- Min Operating Temperature
- 23
- Min Storage Temperature
- 13
- MTBF
- 557,320 hours
- Performance
- Switching capacity : 216 Gbps Forwarding performance (64-byte packet size) : 71.4 Mpps
- Ports
- 24 x 10/100/1000 + 4 x Gigabit SFP
- Power Consumption Operational
- 250 Watt
- Power Device
- Internal power supply
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Processor
- : 600 MHz
- RAM
- 512 MB
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Routing Protocol
- OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
- Software Included
- Cisco IOS IP Lite
- Status Indicators
- Link activity, port transmission speed, port duplex mode, system, status
- Voltage Required
- AC 120/230 V ( 50/60 Hz )
- Производитель
- Cisco
- Service & Support
- Limited lifetime warranty
- Service & Support Details
- Limited warranty - advance parts replacement - lifetime - response time: 10 days Technical support - consulting - 90 days
